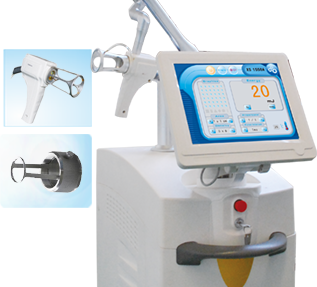

Pmise-10600AH

Ultrapulse CO2 Fractional Laser (10600nm)

Pmise-10600AH

  • Three output modes: CW, UltraPulse and Fractional.
  • The COHERENT RF-excited metal laser system enables the output quality to be more stable, more uniform and more consistent, (compared to ordinary CO2 laser with glass tubes)
  • Sunny scanner uniforms focal spot quality.
  • The spots size is adjustable according to different treatment area.
  • Various spot volumes are suitable for different treatment areas which maximally avoids the side-effect that result from the overlapping of the spot, reducing the pain during treatment, satisfies different therapists' unique requests.

Treatment Theory

Fractional laser penetrates skin and forms tiny thermal channels. This creates some ablative and thermal effect only on these channels (a micro-injury) without damaging the surrounding tissue. The tissues surrounding the micro-injuries (about 15-20% of the treatment area) start the healing process. As the collagen remodels, the skin is tightened, scars and pigmented lesions are improved as well

Application

1. Application Range of Fractional Mode:

a. large pores, fine lines, skin tightening and whitening, skin loosen, deep wrinkles, stretch marks;

b. various scars: burnt scars, acne scars, surgical scars and Keloid;

c. pigmented skin lesions: Chloasma, freckles, age spots, sun spots, CAMLS;

d. reconstruction of photo-aging skin.

2. Application Range of CW and Ultra-pulse modes:

In cosmetic surgery, it can be adopted to incisions for Blepharoplasty, skin tags and ingrown nails, compound Nevus and intra dermal Nevus etc.

Advantages

1. Three output modes: CW, UltraPulse and Fractional.

2. The COHERENT RF-excited metal laser system enables the output quality to be more stable, more uniform and more consistent, (compared to ordinary CO2 laser with glass tubes)

3. Sunny scanner uniforms focal spot quality.

4. The spots size is adjustable according to different treatment area.

5. Various spot volumes are suitable for different treatment areas which maximally avoids the side-effect that result from the overlapping of the spot, reducing the pain during treatment, satisfies different therapists' unique requests.

6. Compared with the traditional Glass tube CO2, RF excited CO2 lasts much longer time.

Specification

Laser TypeCOHERENT RF-excited CO² Laser
Wavelength10600nm
Laser Power30W/25W/20W (optional)
Laser Operating ModeCW, UP, CPG
Pulse Width0.067ms-0.67ms
Spot Diameter50μm-2000μm
Scanning ModeSequential / Randomized Scanning
Pulse Power2mj-200mj
Pulse Interval1ms-100ms (Step 1ms)
Spot GraphicTriangle/ Square/ Rectangle / Rhombus / Round / Line
Beam Delivery7-joint arm
Spot Density6x6 spots/cm², 12x12 spots/cm², 18x18 spots/cm², 24x24 spots/cm²
Scan Area1 cm x1 cm, 2 cm x2 cm, 3 cm x3cm
Insurance StandardMax10A
CoolingAir Cooling
Net Weight60kg
Gross Weight75kg
Dimensions82x50x106cm3
