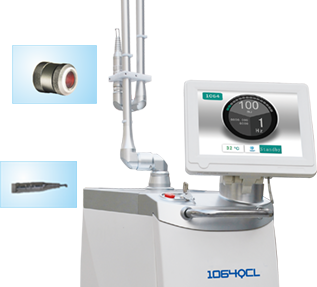

EO Q-Switched Nd:YAG Laser
Pmise-1064QCL
- Dual wavelengths (1064nm & 532nm) are convenient to adjust by touching LCD.
- Multi-spot size (1-7mm) is ideal for a wide variety of treatment parameters.
- Cost effencient, high value with low cost.
- The Q-switched Nd:YAG laser(single pulse 800mj) radiates the light with a specific wavelength in high peak energy pulses, hence the light penetrates into the tissue only for a nanosecond.
Treatment Theory
The Q-switched Nd:YAG laser(single pulse 800mj) radiates the light with a specific wavelength in high peak energy pulses, hence the light penetrates into the tissue only for a nanosecond. The light is absorbed by the pigmentation and results in an instantaneous blast, that is Light blasting principle. The pigmentation particles are shattered into fragments, some can be bounced out of the skin and others can be splited into tiny particles that can be engulfed by phagocytes and then eliminated by the lymphatic system.
Application
1. Tattoos (black, red, brown, blue, etc.);
2. Pigmented lesions:
Sunspot, Ota's nevus, Melasma, Age spots, CALMS, Nevus, Zygomatices etc.
3. Laser facial:
Skin rejuvenation and resurfacing, fine wrinkles and expression lines removal, pigmentations reduction such as sunspots and freckles, firms up skin tone.
Advantages
1. Dual wavelengths (1064nm & 532nm) are convenient to adjust by touching LCD.
2. Multi-spot size (1-7mm) is ideal for a wide variety of treatment parameters.
3. Cost effencient, high value with low cost.
Specification
| Laser Type | Q-switched Nd:YAG laser |
|---|---|
| Maximum Energy | 600mj-1064nm; |
| Frequency | 1-10Hz |
| Beam Delivery | 7-joint Arm |
| Wavelength | 1064nm, 532nm |
| Pulse Width | 8ns |
| Spot Diameter | 1-7mm continuously adjustable |
| Power Supply | AC 220V 50Hz;AC 110V 60Hz |
| Insurance Standard | Max 10A |
| Net Weight | 65kg |
| Gross Weight | 84kg |
| Dimensions | 83x52.5x107cm3 |
