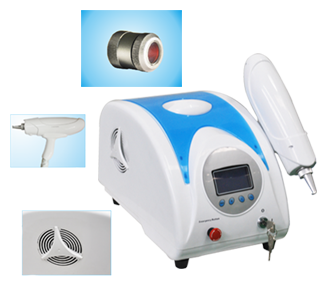

Pmise-MV12

Q-Switched Nd:YAG Laser

Pmise-MV12

  • Cost effective.
  • Portable and smart design.
  • The Q-switched Nd:YAG laser radiates the light with a specific wavelength in high peak energy pulse,hence the light penetrates the tissue only for an ultra-short nanosecond.
  • The pigment particles are shattered into fragments, parts of them will be bounced out of the skin and other parts will be split into tiny particles that can be engulfed by phagocytes and then metabolized by the lymphatic system.

Treatment Theory

The Q-switched Nd:YAG laser radiates the light with a specific wavelength in high peak energy pulse; hence the light penetrates the tissue only for an ultra-short nanosecond. The light is absorbed by the pigment tissue and results in an instantaneous blast, that is Light blasting principle. The pigment particles are shattered into fragments, parts of them will be bounced out of the skin and other parts will be split into tiny particles that can be engulfed by phagocytes and then metabolized by the lymphatic system.

Application

1. Tattoos (black, red, brown, blue, etc.)

Tattoo eye line,tattoo eyebrow

2. Pigmented lesions:

Sunspot, Age spots, Nevus, Freckle

3. Laser facial:

Skin rejuvenation, fine wrinkles and expression lines removal, pore firming, lighten spots, blackTip removal, oil control

Advantages

Cost effective.

Portable and smart design.

The Q-switched Nd:YAG laser radiates the light with a specific wavelength in high peak energy pulse,hence the light penetrates the tissue only for an ultra-short nanosecond.

The pigment particles are shattered into fragments, parts of them will be bounced out of the skin and other parts will be split into tiny particles that can be engulfed by phagocytes and then metabolized by the lymphatic system.

Specification

Laser TypeQ-switched Nd:YAG laser
Spot Diameter1-5mm continuously adjustable
CoolingWater& Air
Energy180-200mj
Wavelength1064nm, 532nm
Pulse Width10ns-20ns
Frequency1-5Hz
Input Power420W
Power SupplyAC 220V 50Hz; AC 110V 60Hz
Insurance StandardMax10A
Net Weight7kg
Gross Weight13kg
Dimensions (before packaged)40×22×20cm3
Dimensions (after Packaged)49×35.5×54cm3
